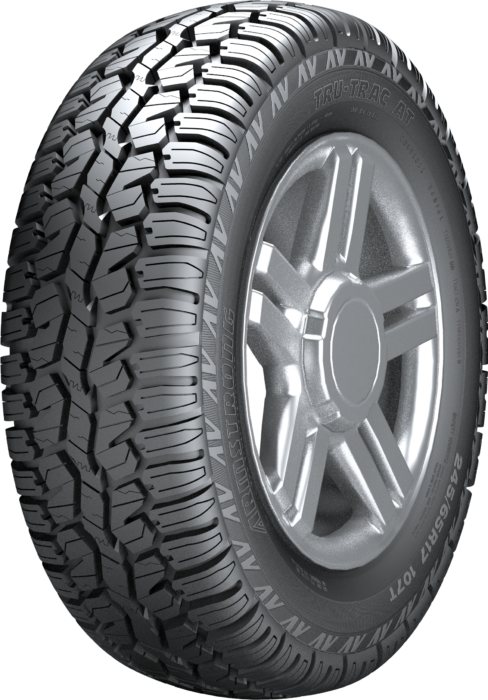

TRU-TRAC AT
True to the Armstrong TRU-TRAC legacy, this All-Terrain tire provides excellent performance on any road, and under tough road conditions delivers high-speed stability, greater steering response, and maximum comfort. Its design also reduces irregular wear and inhibits block wriggling.
Category: All Terrain
Rating: UTQG 560 A B
6 YEAR LIMITED WARRANTY
24/7 ROADSIDE ASSISTANCE
ROAD HAZARD REPAIRS
60K MILEAGE WARRANTY
WARRANTY 30-DAY MONEY BACK
Features
Four zigzag circumferential grooves.
Zigzag grooves provide excellent performance on any road surface.
![](https://armstrongtire.com/app/uploads/2019/07/ARM-TRU-TRAC-AT_Grooves-web-720x0-c-default.jpg)
Interlocking center blocks.
Interlocking center blocks with slanted edges ensure maximum comfort in off-road driving conditions.
![](https://armstrongtire.com/app/uploads/2019/07/ARM-TRU-TRAC-AT_Center-blocks-web-720x0-c-default.jpg)
Rugged casing.
Rugged casing improves high-speed stability and provides greater steering response under tough road conditions.
![](https://armstrongtire.com/app/uploads/2019/07/ARM-TRU-TRAC-AT_Casing-web-720x0-c-default.jpg)
Connecting bridges between blocks.
Connecting bridges between shoulder blocks inhibit irregular wear and reduce block wriggling.
![](https://armstrongtire.com/app/uploads/2019/07/ARM-TRU-TRAC-AT_Shoulder-bridges-web-720x0-c-default.jpg)
Specifications
Ascept Ratio | Tire Size | Load & Speed Index | PR | Maximum Load Single (lbs) | Maximum Load Dual (lbs) | Maximum Inflation Pressure (psi) | Rim Width (inches) | Section Width (inches) | Overall Diameter (inches) | Tread Depth (32nds) |
---|---|---|---|---|---|---|---|---|---|---|
75 | 235/75R15 | 109T XL | - | - | 2270 | 50 | 6.5 | 9.3 | 28.7 | 13 |
70 | 265/70R15 | 116T XL | - | - | 2755 | 50 | 8.0 | 10.7 | 29.6 | 13 |
215/70R16 | 104T XL | - | - | 1985 | 50 | 6.5 | 8.9 | 27.8 | 13 | |
225/70R16 | 107T XL | - | - | 2150 | 50 | 6.5 | 9.1 | 28.3 | 11 | |
235/70R16 | 109T XL | - | - | 2270 | 50 | 7.0 | 9.6 | 29 | 13 | |
245/70R16 | 111T XL | - | - | 2405 | 50 | 7.0 | 9.8 | 29.4 | 13 | |
265/70R16 | 116T XL | - | - | 2755 | 50 | 8.0 | 10.7 | 30.5 | 11 | |
265/70R17 | 116T XL | - | - | 2755 | 50 | 8.0 | 10.7 | 31.7 | 13 | |
65 | 225/65R17 | 106H XL | - | - | 2095 | 50 | 6.5 | 8.9 | 28.4 | 13 |
235/65R17 | 108H XL | - | - | 2205 | 50 | 7.0 | 9.4 | 29.1 | 13 | |
245/65R17 | 111T XL | - | - | 2405 | 50 | 7.0 | 9.6 | 29.4 | 13 | |
265/65R17 | 116T XL | - | - | 2755 | 50 | 8.0 | 10.7 | 30.6 | 12 | |
60 | 265/60R18 | 114T XL | - | - | 2600 | 50 | 8.0 | 10.6 | 30.5 | 13 |
275/60R20 | 116T XL | - | - | 2755 | 50 | 8.0 | 10.9 | 33 | 13 | |
55 | 275/55R20 | 117T XL | - | - | 2835 | 50 | 8.5 | 10.9 | 31.9 | 13 |
Flotation | LT31X10.50R15 | 109S | 6 | 2270 | - | 50 | 8.5 | 10.5 | 30.5 | 15 |
85 | LT 235/85R16 | 120/116S | 10 | 3085 | 2755 | 80 | 6.5 | 9.5 | 31.6 | 16 |
80 | LT 235/85R17 | 120/117R | 10 | 3085 | 2835 | 80 | 6.5 | 9.4 | 31.8 | 15 |
75 | LT 225/75R16 | 115/112S | 10 | 2680 | 2470 | 80 | 6.0 | 8.7 | 29.2 | 16 |
LT 245/75R16 | 120/116S | 10 | 3085 | 2755 | 80 | 7.0 | 9.8 | 30.4 | 16 | |
LT 265/75R16 | 123/120R | 10 | 3415 | 3085 | 80 | 7.5 | 10.6 | 31.6 | 15 | |
LT 315/75R16 | 127/124R | 10 | 3860 | 3525 | 65 | 8.5 | 12.7 | 34.5 | 17 | |
LT 245/75R17 | 121/118S | 10 | 3195 | 2910 | 80 | 7.0 | 9.8 | 31.4 | 15 | |
70 | LT 265/75R16 | 124/121R | 10 | 3525 | 3195 | 65 | 9.0 | 12.5 | 32.7 | 17 |
LT 265/70R17 | 121/118S | 10 | 3195 | 2910 | 80 | 8.0 | 10.6 | 31.7 | 16 | |
LT 285/70R17 | 121/118S | 10 | 3195 | 2910 | 80 | 8.5 | 11.2 | 32.7 | 17 | |
65 | LT 325/65R18 | 127/124R | 10 | 3860 | 3525 | 65 | 9.5 | 13.3 | 34.5 | 17 |
LT 275/65R20 | 126/123S | 10 | 3750 | 3415 | 80 | 8.0 | 10.7 | 34.1 | 16 | |
60 | LT 325/60R20 | 126/123R | 10 | 3750 | 3415 | 65 | 9.5 | 12.9 | 35.3 | 16 |
55 | LT 285/55R20 | 122/119S | 10 | 3305 | 3000 | 80 | 9.0 | 11.2 | 33.7 | 15 |
LT 305/55R20 | 121/118S | 10 | 3195 | 2910 | 65 | 9.5 | 12.1 | 33.2 | 16 |
