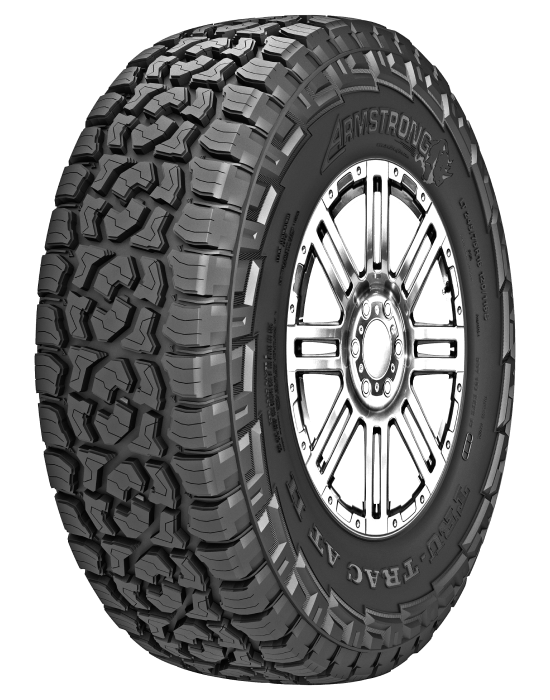

TRU-TRAC AT II
The TRU-TRAC AT II is the 2nd generation “All-Terrain” pattern feature a distinctive block pattern design and premium compound, allowing drivers to navigate challenging terrains with ease and confidence. Whether traversing rough or muddy surfaces, this pattern provide a smooth ride and become the leaders on the road.
Category: 4x4
Rating: UTQG 600 A B / M+S
6 YEAR LIMITED WARRANTY
65K MILEAGE WARRANTY
ROAD HAZARD COVERAGE
30-DAY MONEY BACK
Features

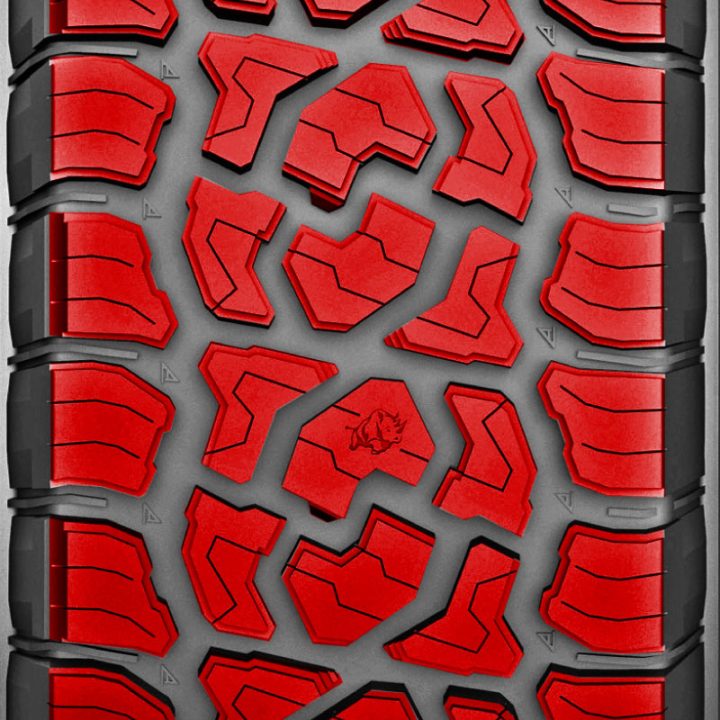

A DYNAMIC TREAD DESIGN WITH RIGID SHOULDER BLOCKS.
Has been optimized to withstand
impacts and provide superior grip
performance in all types of road
conditions.

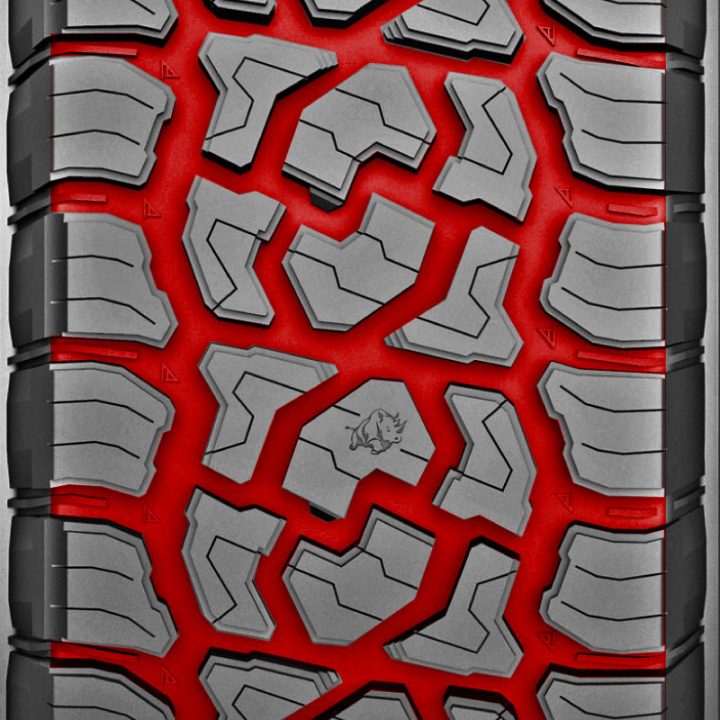

ENGINEERED GROOVES OF DIFFERENT WIDTHS.
Effectively reduced noise levels,
resulting in a more comfortable
driving experience.

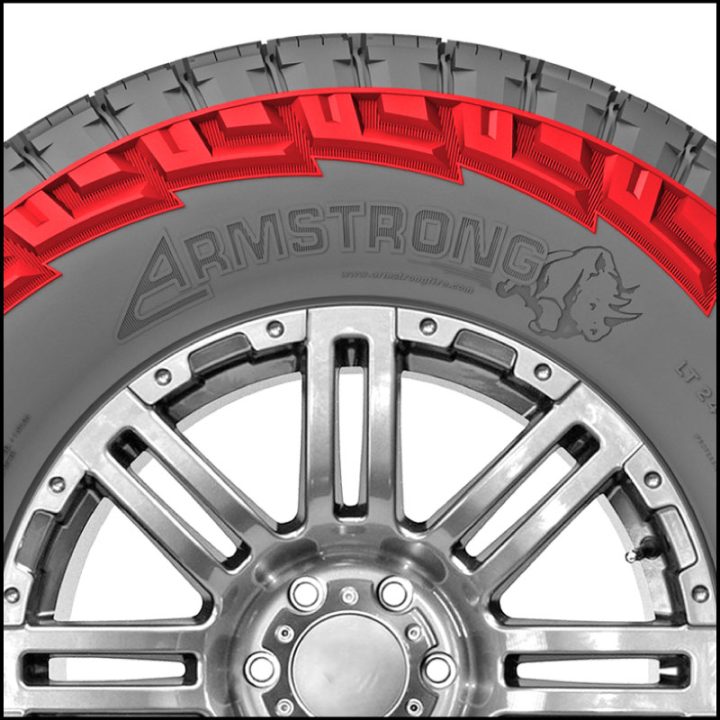

THE REINFORCED SIDEWALL.
Provides a robust defense against
any potential damage or side
traction occurring in the critical
sidewall failure zone.

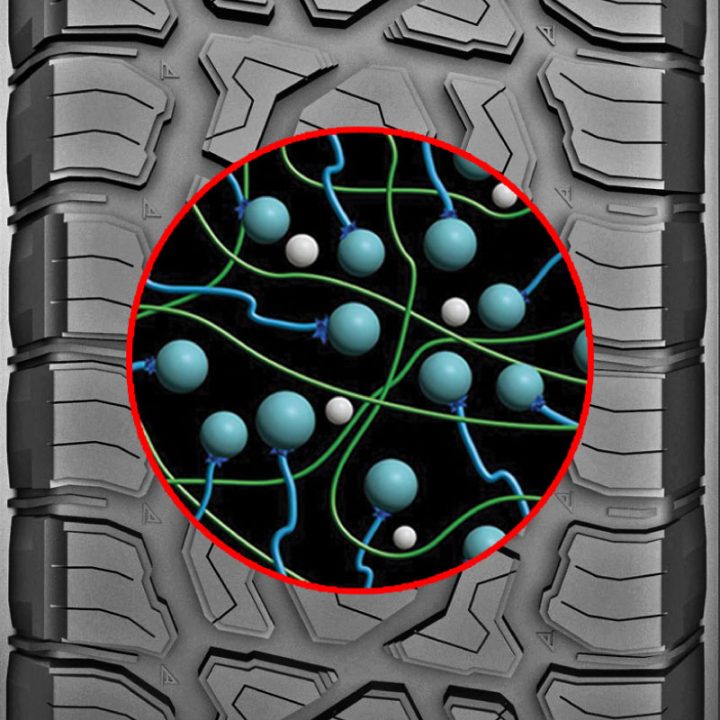

A SPECIAL RUBBER COMPOUND.
Is utilized to boost the tire’s ability
to withstand tearing and improves
traction and ride comfort both on
and off the road.
Specifications
| Rim Diameter | Series | Size | PR | Load & Speed Index | Max Load Single (lbs) | Max Load Dual (lbs) | Max. Inflation Pressure (psi) | Rim Width (inches) | Section Width (inches) | Overall Diameter (inches) | Tread Depth (32nds) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 35 | 305/35R24 | - | 112S | 2469 | - | 44 | 11.0 | 12.3 | 32.4 | 13 |
| 22 | 40 | 305/40R22 | - | 114S | 2601 | - | 44 | 11.0 | 12.3 | 31.6 | 13 |
| 45 | 285/45R22 | - | 114H XL | 2601 | - | 50 | 9.5 | 11.1 | 32.3 | 13 | |
| 305/45R22 | - | 118S XL | 2910 | - | 50 | 10.0 | 11.9 | 32.9 | 13 | ||
| 20 | 50 | 245/50R20 | - | 105H XL | 2039 | - | 50 | 7.5 | 10.0 | 29.7 | 13 |
| 255/50R20 | - | 109T XL | 2271 | - | 50 | 8.0 | 10.4 | 30.1 | 13 | ||
| 265/50R20 | - | 111T XL | 2403 | - | 50 | 8.5 | 10.5 | 30.7 | 12 | ||
| 305/50R20 | - | 120S XL | 3086 | - | 50 | 9.5 | 12.4 | 32.0 | 13 | ||
| 55 | 255/55R20 | - | 110H XL | 2337 | - | 50 | 8.0 | 10.4 | 31.0 | 13 | |
| 275/55R20 | - | 117T XL | 2833 | - | 50 | 8.5 | 11.2 | 31.9 | 13 | ||
| 285/55R20 | - | 116T | 2756 | - | 44 | 9.0 | 11.7 | 32.4 | 13 | ||
| 60 | 275/60R20 | - | 115T | 2679 | - | 44 | 8.0 | 11.0 | 33.0 | 13 | |
| 65 | 275/65R20 | - | 116T | 2756 | - | 44 | 8.0 | 11.0 | 34.1 | 13 | |
| 18 | 55 | 225/55R18 | - | 102H XL | 1874 | - | 50 | 7.0 | 9.2 | 27.8 | 13 |
| 255/55R18 | - | 109H XL | 2271 | - | 50 | 8.0 | 10.4 | 29.0 | 13 | ||
| 60 | 225/60R18 | - | 104T XL | 1984 | - | 50 | 6.5 | 9.0 | 28.6 | 13 | |
| 235/60R18 | - | 107T XL | 2149 | - | 50 | 7.0 | 9.4 | 29.1 | 13 | ||
| 245/60R18 | - | 109T XL | 2271 | - | 50 | 7.0 | 9.8 | 29.6 | 13 | ||
| 265/60R18 | - | 110T | 2337 | - | 44 | 8.0 | 10.7 | 30.5 | 12 | ||
| 265/60R18 | - | 114T XL | 2601 | - | 50 | 8.0 | 10.7 | 30.5 | 12 | ||
| 285/60R18 | - | 120S XL | 3086 | - | 50 | 8.5 | 11.5 | 31.5 | 13 | ||
| 235/65R18 | - | 110T XL | 2337 | - | 50 | 7.0 | 9.4 | 30.0 | 13 | ||
| 265/65R18 | - | 114T | 2601 | - | 44 | 8.0 | 10.7 | 31.5 | 12 | ||
| 275/65R18 | - | 116T | 2756 | - | 44 | 8.0 | 10.9 | 31.9 | 12 | ||
| 70 | 255/70R18 | - | 113T | 2535 | - | 44 | 7.5 | 10.2 | 32.1 | 13 | |
| 265/70R18 | - | 116T | 2756 | - | 44 | 8.0 | 10.7 | 32.6 | 13 | ||
| 17 | 60 | 225/60R17 | - | 103T XL | 1929 | - | 50 | 6.5 | 9.0 | 27.6 | 13 |
| 65 | 215/65R17 | - | 103T XL | 1929 | - | 50 | 6.5 | 8.7 | 28.0 | 13 | |
| 225/65R17 | - | 102T | 1874 | - | 44 | 6.5 | 9.0 | 28.5 | 12 | ||
| 235/65R17 | - | 108H XL | 2205 | - | 50 | 7.0 | 9.3 | 29.0 | 12 | ||
| 245/65R17 | - | 111T XL | 2403 | - | 50 | 7.0 | 9.8 | 29.5 | 12 | ||
| 265/65R17 | - | 116T XL | 2756 | - | 50 | 8.0 | 10.8 | 30.5 | 12 | ||
| 265/65R17 | - | 112H | 2469 | - | 44 | 8.0 | 10.8 | 30.5 | 12 | ||
| 70 | 245/70R17 | - | 110T | 2337 | - | 44 | 7.0 | 9.8 | 30.6 | 13 | |
| 255/70R17 | - | 112T | 2469 | - | 44 | 7.5 | 10.2 | 31.1 | 13 | ||
| 265/70R17 | - | 115T | 2679 | - | 44 | 8.0 | 10.7 | 31.7 | 13 | ||
| 285/70R17 | - | 117T | 2833 | - | 44 | 8.5 | 11.5 | 32.6 | 13 | ||
| 75 | 235/75R17 | - | 108S | 2205 | - | 44 | 6.5 | 9.3 | 30.9 | 13 | |
| 16 | 70 | 225/70R16 | - | 103T | 1929 | - | 44 | 6.5 | 9.0 | 28.4 | 13 |
| 255/70R16 | - | 111S | 2403 | - | 44 | 7.5 | 10.2 | 29.9 | 13 | ||
| 265/70R16 | - | 111T | 2403 | - | 44 | 8.0 | 10.7 | 30.6 | 13 | ||
| 75 | 245/75R16 | - | 111S | 2403 | - | 44 | 7.0 | 9.7 | 30.3 | 12 | |
| 15 | 75 | 215/75R15 | - | 100S | 1764 | - | 44 | 6.0 | 8.7 | 27.5 | 12 |
| 24 | Flotation | LT35X12.50R24 | 12 | 116R | 2755 | - | 80 | 10.5 | 12.4 | 34.5 | 17 |
| 22 | Flotation | LT33X12.50R22 | 12 | 114R | 2600 | - | 80 | 10.0 | 12.0 | 32.8 | 17 |
| LT35X12.50R22 | 12 | 121R | 3195 | - | 80 | 10.0 | 12.2 | 34.7 | 16 | ||
| 50 | LT325/50R22 | 12 | 127S | 3860 | - | 80 | 9.5 | 12.8 | 35 | 16 | |
| 55 | LT285/55R22 | 10 | 124/121S | 3525 | 3195 | 80 | 9.0 | 11.7 | 34.4 | 17 | |
| 20 | Flotation | LT33X12.50R20 | 12 | 119R | 3000 | - | 80 | 10.0 | 12.3 | 32.7 | 17 |
| LT35X11.50R20 | 10 | 124R | 3525 | - | 80 | 9.0 | 11.6 | 34.5 | 17 | ||
| LT35X12.50R20 | 10 | 121R | 3195 | - | 65 | 10.0 | 12.4 | 34.5 | 16 | ||
| LT35X12.50R20 | 12 | 125R | 3640 | - | 80 | 10.0 | 12.4 | 34.5 | 16 | ||
| LT35X13.50R20 | 12 | 126R | 3750 | - | 80 | 11.0 | 13.7 | 34.5 | 16 | ||
| LT37X12.50R20 | 10 | 126R | 3750 | - | 65 | 10.0 | 12.8 | 36.5 | 17 | ||
| 55 | LT275/55R20 | 10 | 120/117S | 3085 | 2835 | 80 | 8.5 | 10.9 | 31.9 | 15 | |
| LT285/55R20 | 10 | 122/119S | 3305 | 3000 | 80 | 9.0 | 11.7 | 32.4 | 17 | ||
| LT295/55R20 | 10 | 123/120T | 3415 | 3085 | 80 | 9.5 | 11.8 | 33.1 | 16 | ||
| LT305/55R20 | 12 | 125/122S | 3640 | 3305 | 80 | 9.5 | 12.1 | 33.4 | 17 | ||
| 60 | LT265/60R20 | 10 | 121/118S | 3195 | 2910 | 80 | 8.0 | 10.4 | 32.6 | 17 | |
| LT275/60R20 | 10 | 123/120S | 3415 | 3085 | 80 | 8.0 | 10.8 | 33.1 | 16 | ||
| LT285/60R20 | 10 | 125/122S | 3640 | 3305 | 80 | 8.5 | 11.4 | 33.4 | 16 | ||
| LT295/60R20 | 10 | 126/123S | 3750 | 3415 | 80 | 8.5 | 11.5 | 34.0 | 17 | ||
| LT325/60R20 | 10 | 126/123S | 3750 | 3415 | 65 | 9.5 | 13.0 | 35.4 | 17 | ||
| 65 | LT275/65R20 | 10 | 126/123S | 3750 | 3415 | 80 | 8.0 | 11.0 | 34.1 | 16 | |
| LT285/65R20 | 10 | 127/124S | 3860 | 3525 | 80 | 8.5 | 11.5 | 34.6 | 16 | ||
| LT295/65R20 | 10 | 129/126S | 4080 | 3750 | 80 | 8.5 | 11.9 | 35.1 | 16 | ||
| 18 | Flotation | LT35X12.50R18 | 12 | 128R | 3970 | - | 80 | 10.0 | 12.7 | 34.5 | 18 |
| 65 | LT265/65R18 | 10 | 122/119Q | 3305 | 3000 | 80 | 8.0 | 10.6 | 31.6 | 17 | |
| 65 | LT275/65R18 | 10 | 123/120S | 3415 | 3085 | 80 | 8.0 | 10.7 | 32.1 | 16 | |
| LT285/65R18 | 10 | 125/122S | 3640 | 3305 | 80 | 8.5 | 11.7 | 32.5 | 15 | ||
| LT325/65R18 | 10 | 127/124R | 3860 | 3525 | 65 | 9.5 | 13.3 | 34.6 | 16 | ||
| 70 | LT265/70R18 | 10 | 124/121Q | 3525 | 3195 | 80 | 8.0 | 10.7 | 32.6 | 16 | |
| LT275/70R18 | 10 | 125/122S | 3640 | 3305 | 80 | 8.0 | 11.0 | 33.2 | 16 | ||
| LT295/70R18 | 10 | 129/126R | 4080 | 3750 | 80 | 8.5 | 11.8 | 34.2 | 16 | ||
| 17 | Flotation | LT33X12.50R17 | 12 | 124S | 3525 | - | 80 | 10.0 | 13.0 | 32.5 | 16 |
| LT35X12.50R17 | 10 | 125R | 3640 | - | 65 | 10.0 | 12.6 | 34.4 | 16 | ||
| LT37X12.50R17 | 8 | 124R | 3525 | - | 50 | 10.0 | 12.9 | 36.5 | 16 | ||
| 70 | LT245/70R17 | 10 | 119/116R | 3000 | 2755 | 80 | 7.0 | 9.9 | 30.4 | 16 | |
| LT265/70R17 | 10 | 123/120S | 3415 | 3085 | 80 | 8.5 | 10.7 | 31.8 | 17 | ||
| LT285/70R17 | 10 | 126/123S | 3750 | 3415 | 80 | 8.5 | 11.6 | 32.7 | 16 | ||
| LT295/70R17 | 10 | 128/125R | 3970 | 3640 | 80 | 8.5 | 12.1 | 33.2 | 16 | ||
| LT305/70R17 | 10 | 125/122R | 3640 | 3305 | 65 | 9.0 | 12.5 | 33.8 | 16 | ||
| LT315/70R17 | 8 | 121/118S | 3195 | 2910 | 50 | 9.5 | 13.1 | 34.3 | 16 | ||
| 75 | LT245/75R17 | 10 | 121/118S | 3195 | 2910 | 80 | 7.0 | 9.8 | 31.5 | 17 | |
| LT285/75R17 | 10 | 128/125R | 3970 | 3640 | 80 | 8.0 | 11.4 | 33.8 | 16 | ||
| 80 | LT235/80R17 | 10 | 120/117R | 3085 | 2835 | 80 | 6.5 | 9.6 | 31.7 | 15 | |
| 16 | 70 | LT305/70R16 | 12 | 128/125R | 3970 | 3640 | 80 | 9.0 | 12.7 | 32.7 | 16 |
| 75 | LT265/75R16 | 10 | 123/120R | 3415 | 3085 | 80 | 7.5 | 10.8 | 31.6 | 16 | |
| LT285/75R16 | 10 | 126/123R | 3750 | 3415 | 80 | 8.0 | 11.7 | 32.6 | 15 | ||
| LT295/75R16 | 10 | 128/125R | 3970 | 3640 | 80 | 8.0 | 12.0 | 33.3 | 16 | ||
| 15 | 70 | LT235/70R15 | 10 | 114/110Q | 2600 | 2335 | 80 | 7.5 | 9.6 | 27.8 | 16 |
| 15 | 75 | LT235/75R15 | 10 | 116/113Q | 2755 | 2535 | 80 | 6.5 | 9.6 | 28.7 | 16 |
