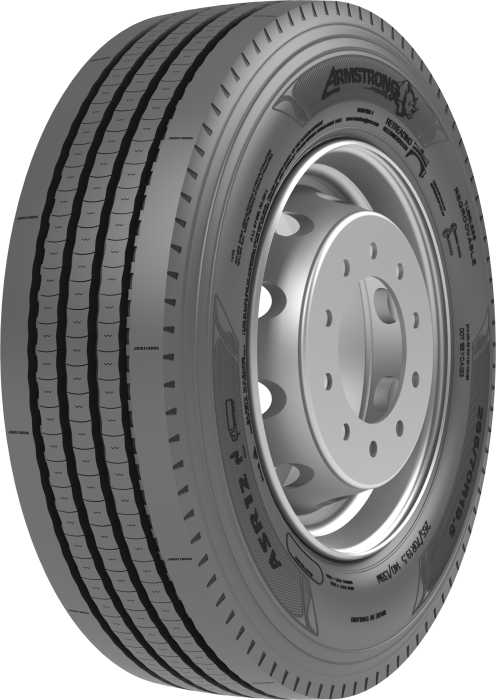

ASR12
A steer pattern designed for regional applications with a wide tread pattern for exceptional grip across all road conditions, a low hysteresis compound that leads to low rolling resistance, solid shoulder ribs for increased handling, and innovative outer grooves for enhanced casing life.
Category: REGIONAL
FREE REPLACEMENT 12MO / 2/32NDS
8-YEAR WARRANTY PERIOD
CASING WARRANTY ‘TIL 3 RETREADS
Features

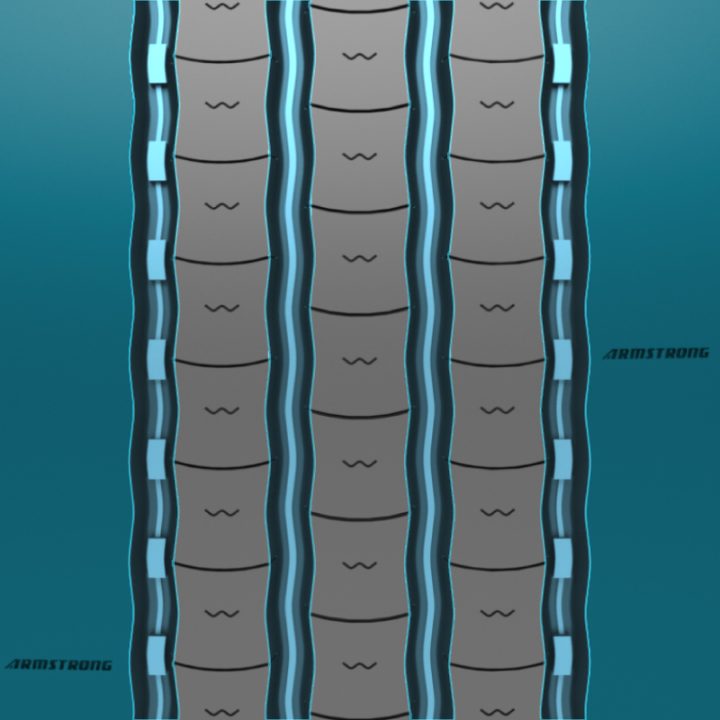

WIDE TREAD PATTERN.
A wide tread pattern with sipes
in three center ribs provides
exceptional grip across all road
conditions.
LOW HYSTERISIS COMPOUND.
Low hysteresis compound leads
to low rolling resistance and
better fuel efficiency, while
delivering extraordinary mileage.

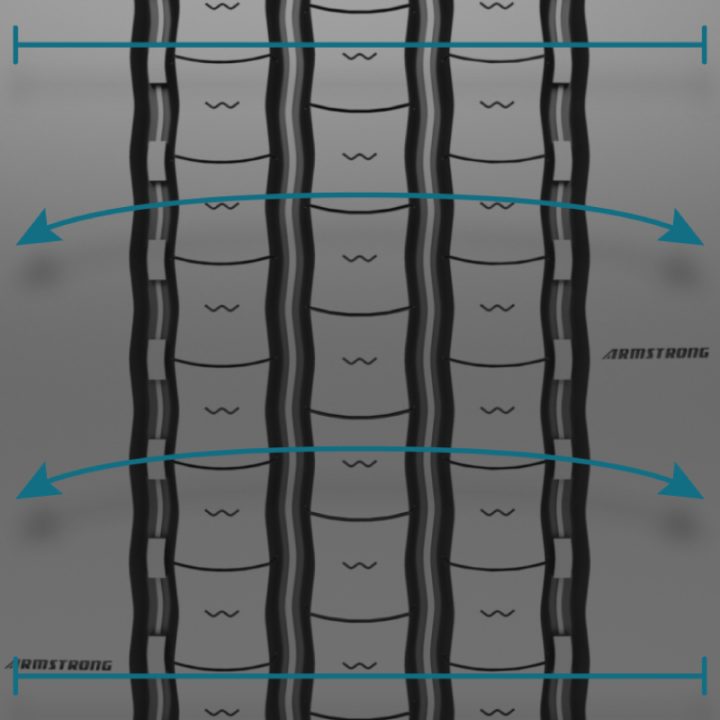

SOLID SHOULDER RIBS.
With four grooves provide
excellent handling and driving
stability.

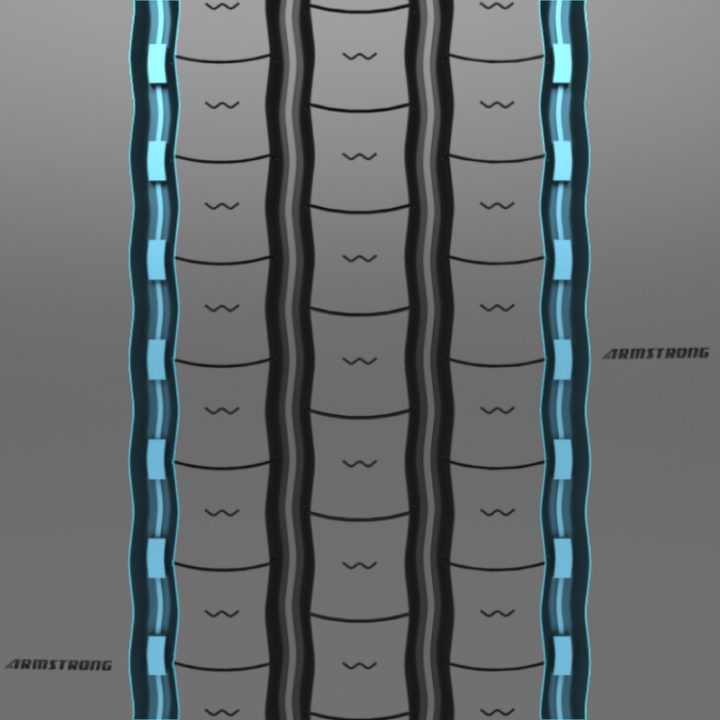

INNOVATIVE OUTER GROOVES.
Innovative outer grooves with a
variable groove angle design and
stone ejectors reduce stone
retention and drilling for
enhanced casing life.
Specifications
| Tire Size | Service Description | Load Range/Ply Rating | Rim Width (inches) | Max. Load Single (lbs) | Max. Load Dual (lbs) | Inflation Pressure (psi) | Overall Diameter (inches) | Section Width (inches) | Minimum Dual Spacing (inches) | Tread Depth (32nds) | Static Loaded Radius (inches) | Max Speed (mph) | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 215/75R17.5 | 128/126M | G/14 | 6.00 | 3970 | 3740 | 110 | 30.1 | 8.4 | 9.4 | 15 | 14.0 | 81 | 694 |
| 235/75R17.5 | 132/130M | G/14 | 6.75 | 4410 | 4190 | 112 | 31.3 | 9.3 | 10.3 | 15 | 14.5 | 81 | 668 |
| 245/70R19.5* | 136/134M | H/16 | 7.50 | 4940 | 4675 | 120 | 31.0 | 9.8 | 11.0 | 15 | 14.4 | 81 | 675 |
| 265/70R19.5* | 140/138M | G/14 | 7.50 | 5510 | 5205 | 110 | 34.3 | 10.3 | 11.6 | 17 | 15.8 | 81 | 613 |
| 285/70R19.5* | 146/144M | H/16 | 7.50 | 6610 | 6175 | 130 | 35.3 | 11.0 | 12.5 | 17 | 16.3 | 81 | 594 |
| *SUITABLE FOR RV | |||||||||||||

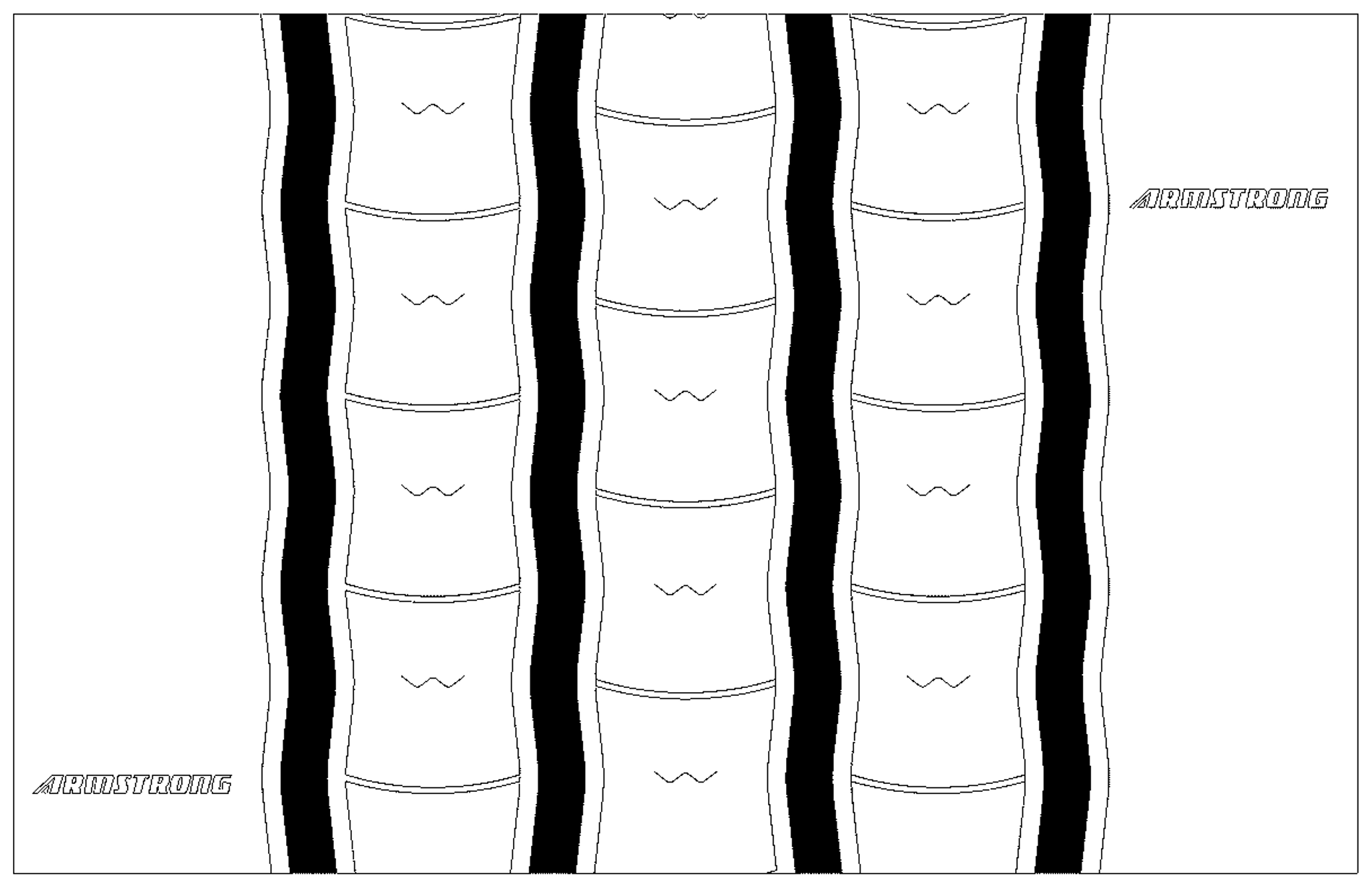

Regrooving Guidelines
| Casing Size | Regrooving Guidelines | Retreading Recommendations | ||
| Depth (32nds) | Width (32nds) | Buffing Radius | Tread Width (mm) | |
| 215/75R17.5 | 3 | 8-9 | 550 mm or 21.6 inches | 200 |
| 235/75R17.5 | 3 | 8-9 | 650 mm or 25.6 inches | 220 |
| 245/70R19.5 | 3 | 8-9 | 710 mm or 27.8 inches | 220 |
| 265/70R19.5 | 3 | 8-9 | 700 mm or 27.6 inches | 235 |
| 285/70R19.5 | 3 | 8-9 | 850 mm or 33.4 inches | 245 |
