ASH+
Steer Axle
A premium steer axle tire for long-haul applications with unique tread design for excellent road grip and wet traction and siping to ensure sharp steering and noise reduction. Decoupling grooves and wider shoulder ribs also help minimize irregular wear.
Category: Long Haul
EPA SmartWay® Verified
Features

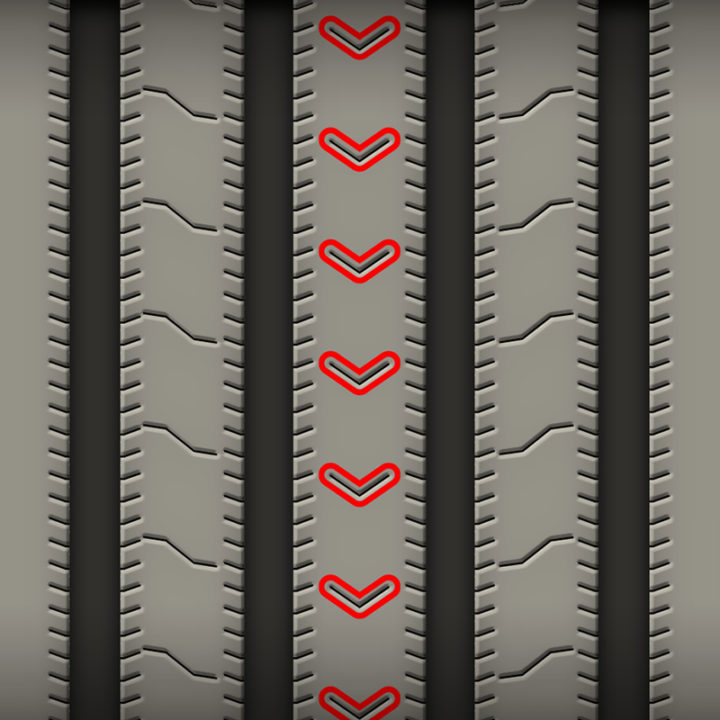

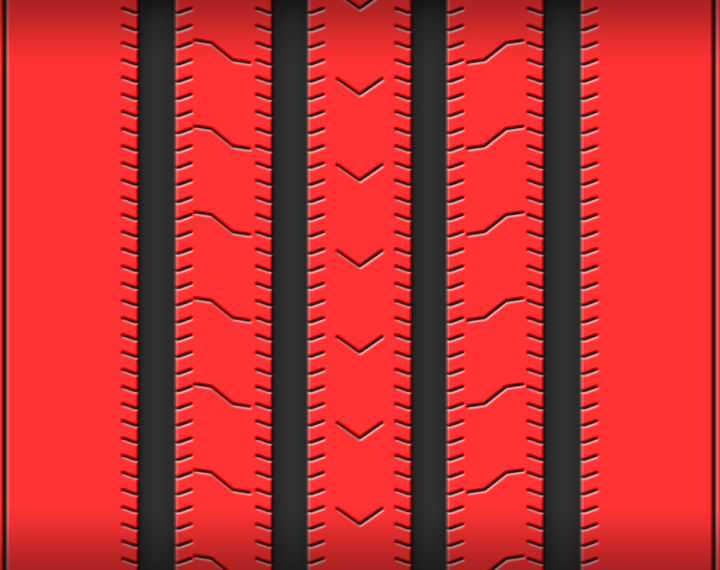

EXCELLENT GRIP AND TRACTION.
Unique tread design offers excellent road grip and traction in wet conditions.
RESISTANCE TO IRREGULAR WEAR.
De-coupling grooves and wider shoulder ribs help minimize irregular wear.

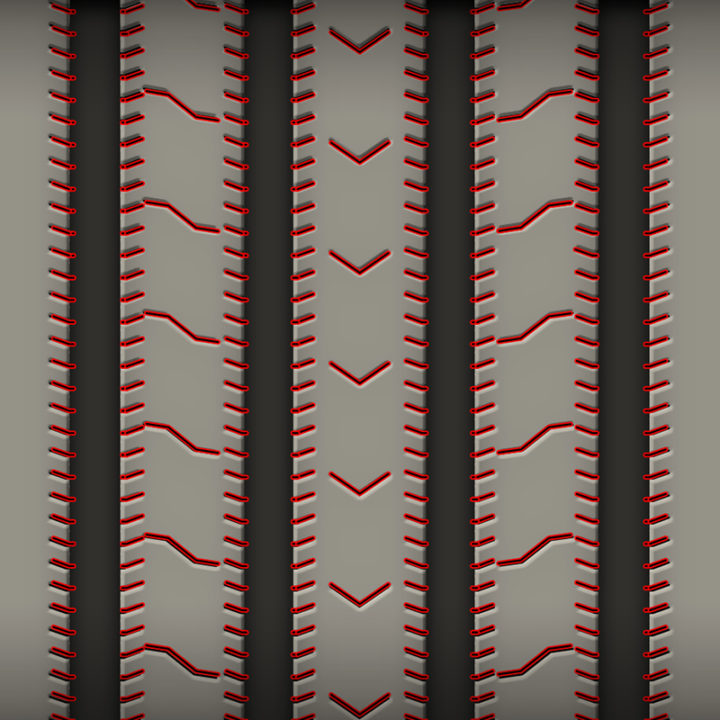

NOISE REDUCTION.
Siping on the tread ensures sharp steering and reduction in noise.
Specifications
| Tire Size | Service Description | Load Range/Ply Rating | Rim Width (inches) | Max. Load Single (lbs) | Max. Load Dual (lbs) | Inflation Pressure (psi) | Overall Diameter (inches) | Section Width (inches) | Minimum Dual Spacing (inches) | Tread Depth (32nds) | Static Loaded Radius (inches) | Max Speed (mph) | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 146/143M | H/16 | 8.25 | 6615 | 6010 | 125 | 41.3 | 11.0 | 12.5 | 18 | 19.3 | 81 | 504 |
| 295/75R22.5 | 148/145L | H/16 | 9.00 | 6945 | 6395 | 125 | 40.3 | 11.4 | 13.2 | 18 | 18.8 | 75 | 517 |
| 11R24.5 | 149/146M | H/16 | 8.25 | 7165 | 6615 | 120 | 43.4 | 11.2 | 12.5 | 18 | 20.2 | 81 | 482 |
| 285/75R24.5 | 144/141L | G/14 | 8.25 | 6175 | 5675 | 110 | 41.4 | 11.0 | 12.5 | 18 | 19.4 | 75 | 503 |
