All Tires
AOWH+
All Position
An all position tire designed exclusively for waste-haul trucks with 10,000 pounds of single-load carrying capacity. Zigzag grooves and shoulder lugs offer better steering control in urban applications while increasing traction and the release of heat. Stone ejectors in all grooves protect the belts and improve retreadability.
Category: URBAN
Features

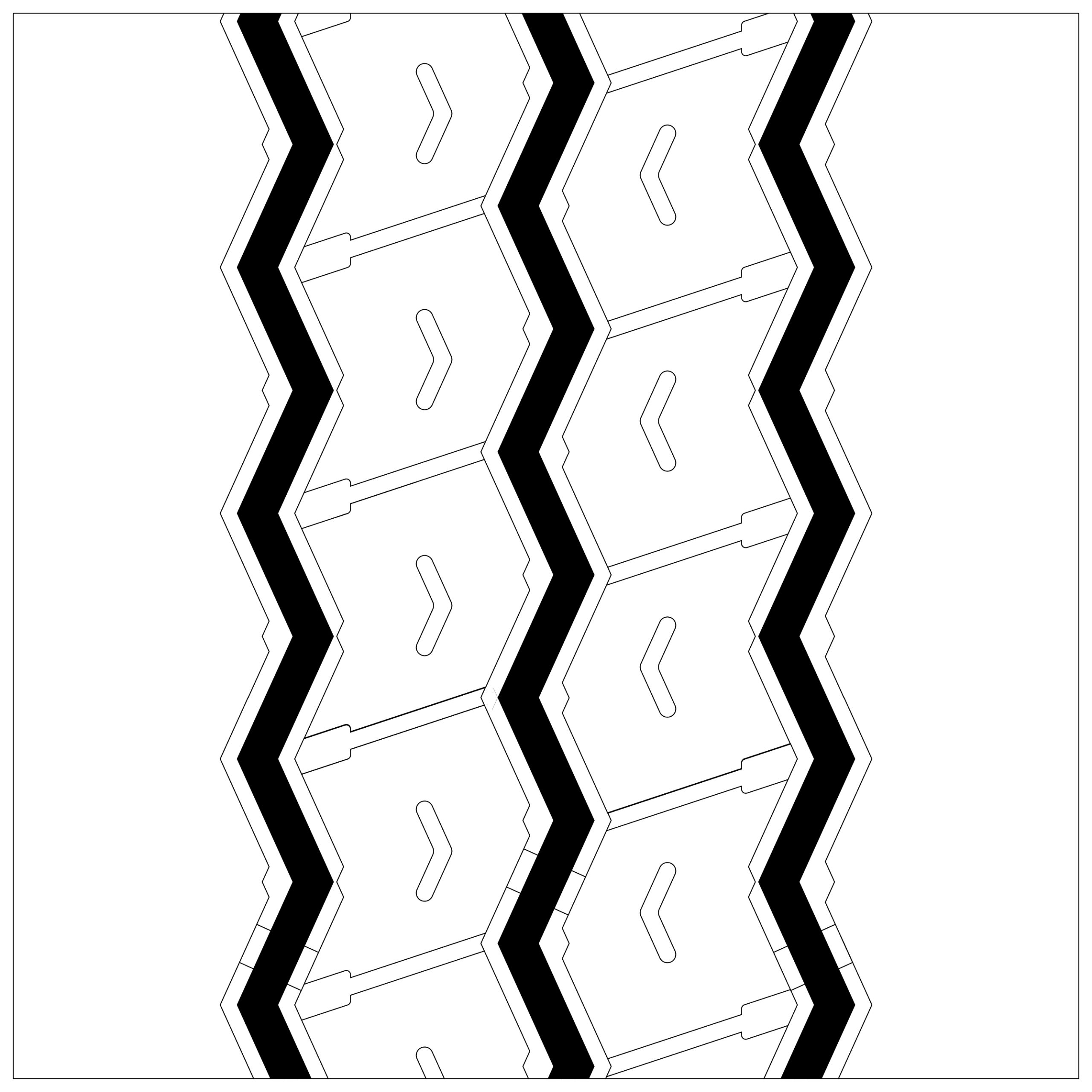

FOUR-RIB PATTERN.
A four-rib pattern maximizes tread volume rubber for longer mileage
OPTIMIZED TREAD COMPOUND.
An optimized tread compound offers cut and chip resistance, lower heat build-up, and longer mileage.
STONE EJECTORS.
Stone ejectors in all grooves prevent damage from stones and road hazards, enhancing tire life
Specifications
| Tire Size | Service Description | Load Range/Ply Rating | Rim Width (inches) | Max. Load Single (lbs) | Max. Load Dual (lbs) | Inflation Pressure (psi) | Overall Diameter (inches) | Section Width (inches) | Minimum Dual Spacing (inches) | Tread Depth (32nds) | Static Loaded Radius (inches) | Max Speed (mph) | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 315/80R22.5 | 161/157K | L/20 | 9.00 | 10195 | 9095 | 130 | 42.9 | 12.5 | 13.8 | 23 | 19.7 | 68 | 490 |
