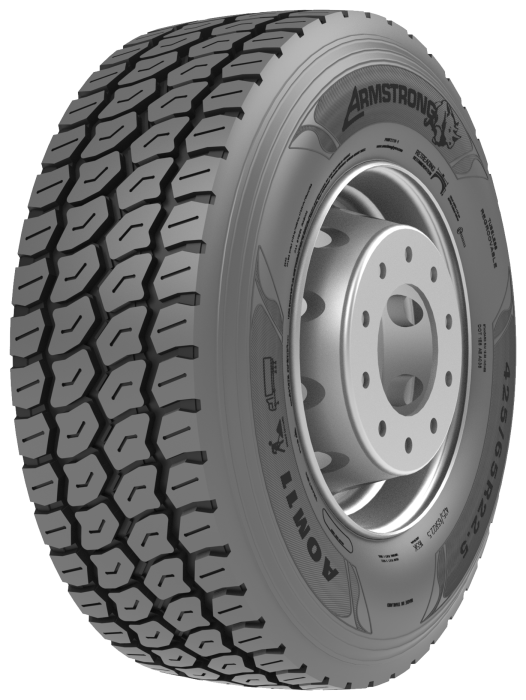

AOM11
An all-position tire for on/off-road applications featuring a wide tread block design with an optimized tie bar that ensures even wear and excellent traction for both on and off-road conditions. Additionally, the extra wide groove design helps to avoid stone trapping, further enhancing traction. Furthermore, the special tread compound is engineered to resist cuts and chips while providing higher mileage.
Category: MIXED (ON/OFF)
FREE REPLACEMENT 12MO / 2/32NDS
8-YEAR WARRANTY PERIOD
CASING WARRANTY ‘TIL 3 RETREADS
Features

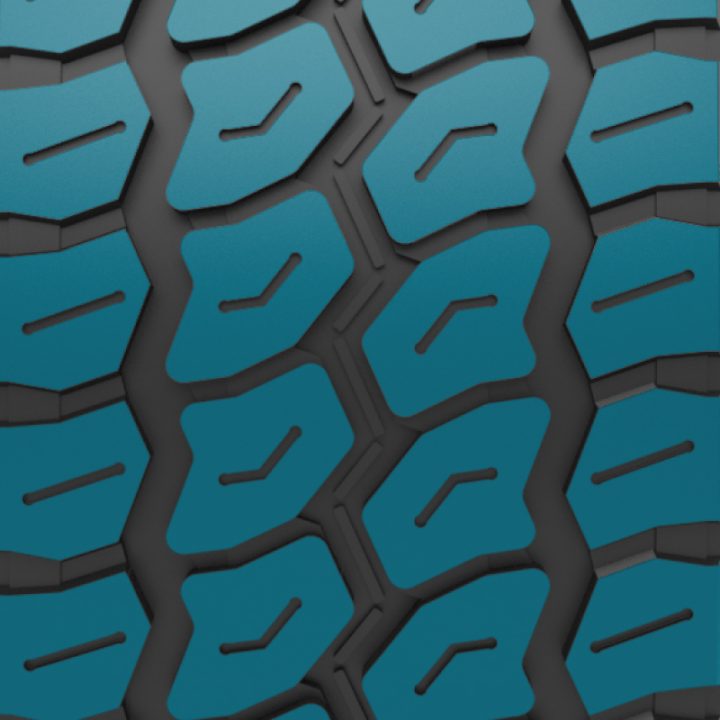

WIDE TREAD BLOCK DESIGN.
With optimized tie bar to ensure even wear and excellent traction for on-off road condition.

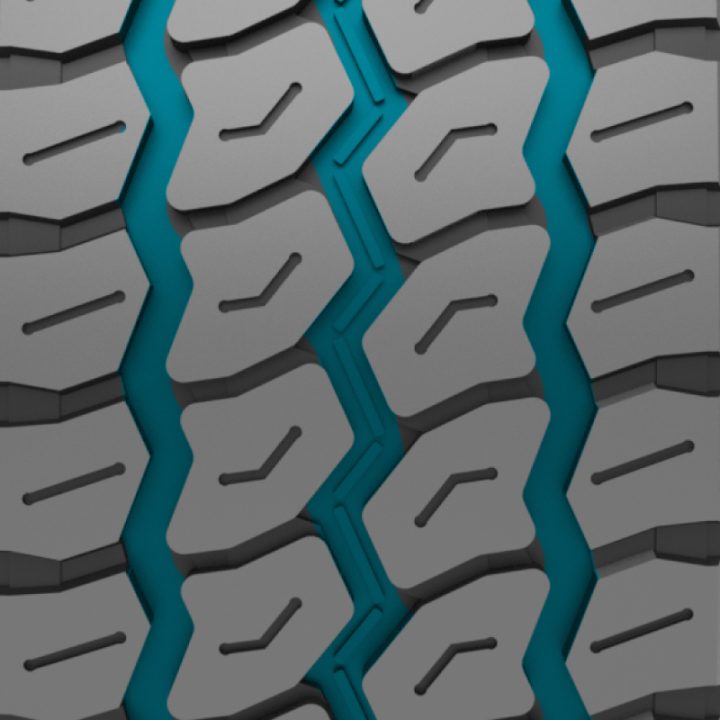

EXTRA WIDE GROOVE DESIGN.
To avoid stone trapping and provide excellent traction.
SPECIAL CUT/CHIP TREAD COMPOUND.
To resist off road abuse and provide higher mileage.
Specifications
| Tire Size | Service Description | Load Range/Ply Rating | Rim Width (inches) | Max. Load Single (lbs) | Max. Load Dual (lbs) | Inflation Pressure (psi) | Overall Diameter (inches) | Section Width (inches) | Minimum Dual Spacing (inches) | Tread Depth (32nds) | Static Loaded Radius (inches) | Max Speed (mph) | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 385/65R22.5 | 160K | L/20 | 11.75 | 9920 | - | 130 | 42.3 | 15.1 | - | 23 | 19.6 | 68 | 495 |
| 385/65R22.5 | 164K | N/24 | 11.75 | 11000 | - | 130 | 42.3 | 15.1 | - | 23 | 19.6 | 68 | 495 |
| 425/65R22.5 | 165K | L/20 | 12.25 | 11400 | - | 120 | 44.5 | 16.7 | - | 23 | 20.5 | 68 | 472 |
| 445/65R22.5 | 169K | L/20 | 13 | 12800 | - | 130 | 45.4 | 17.4 | - | 21 | 20.9 | 68 | 462 |

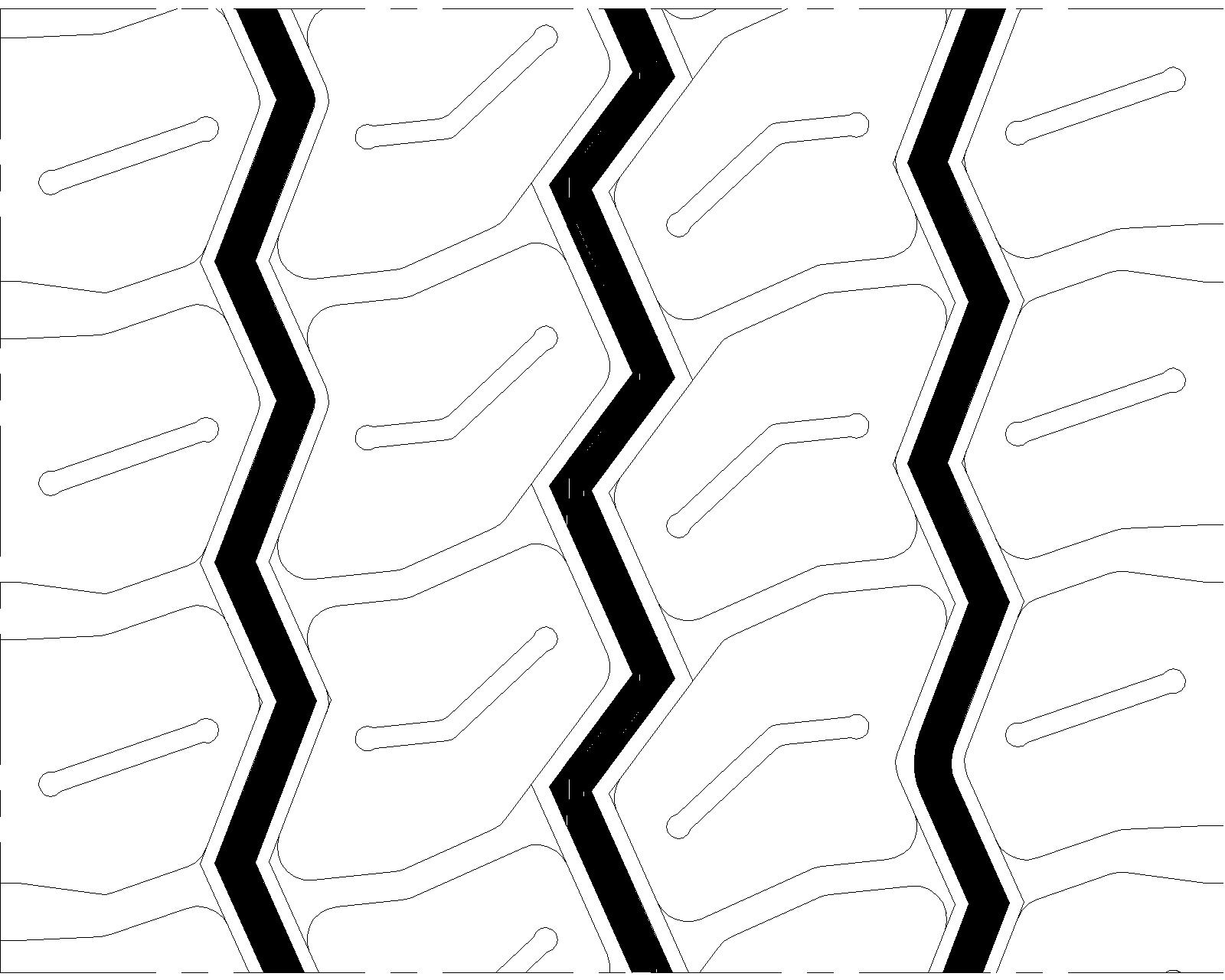

Regrooving Guidelines
| Casing Size | Regrooving Guidelines | Retreading Recommendations | ||
| Depth (32nds) | Width (32nds) | Buffing Radius | Tread Width (mm) | |
| 385/65R22.5 | 3 | 9-11 | 1000 mm or 39.4 inches | 315 |
| 385/65R22.5 | 3 | 9-11 | 1000 mm or 39.4 inches | 315 |
| 425/65R22.5 | 3 | 9-11 | 1300 mm or 51.2 inches | 340 |
| 445/65R22.5 | 3 | 9-11 | 1100 mm or 43.3 inches | 355 |
