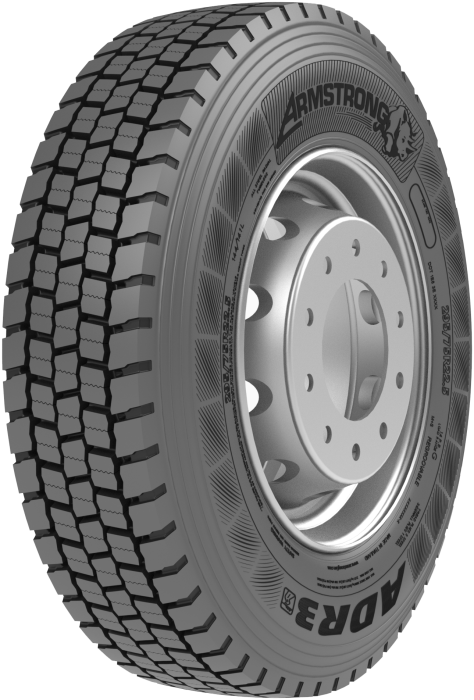

ADR3
A drive axle tire for regional applications. The enhanced block-type tread design features an optimized footprint, which contributes to improved traction, increased mileage, and a reduction in irregular wear. The incorporation of 3D sipes and open shoulder lugs ensures excellent traction and facilitates quicker water evacuation across various road conditions. Additionally, the reinforced casing enhances the tire’s durability and retreadability.
Category: REGIONAL
EPA SmartWay® Verified
FREE REPLACEMENT 12MO / 2/32NDS
8-YEAR WARRANTY PERIOD
CASING WARRANTY ‘TIL 3 RETREADS
ROAD HAZARD COVERAGE
Features

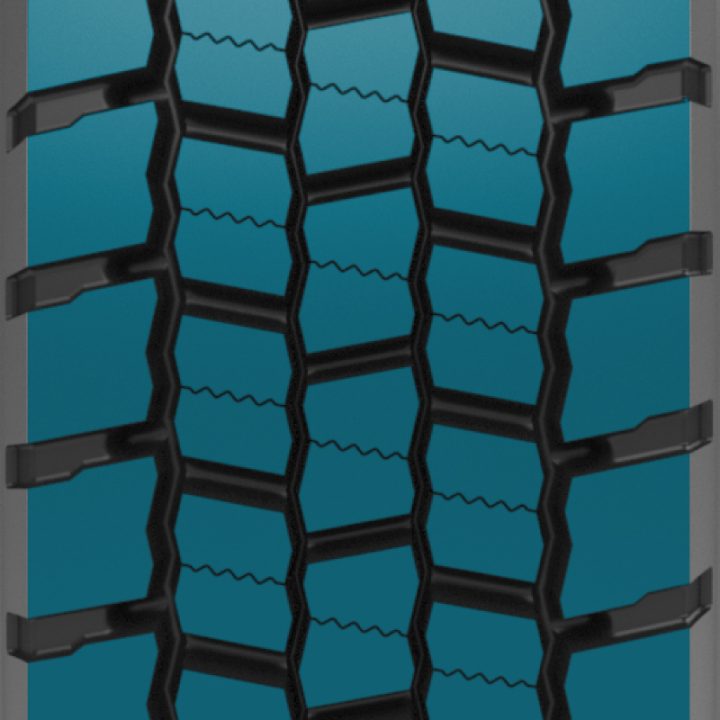

ENHANCED BLOCK TYPE TREAD DESIGN WITH OPTIMIZED FOOTPRINT.
Provides better traction,
increased mileage and reduced
irregular wear.

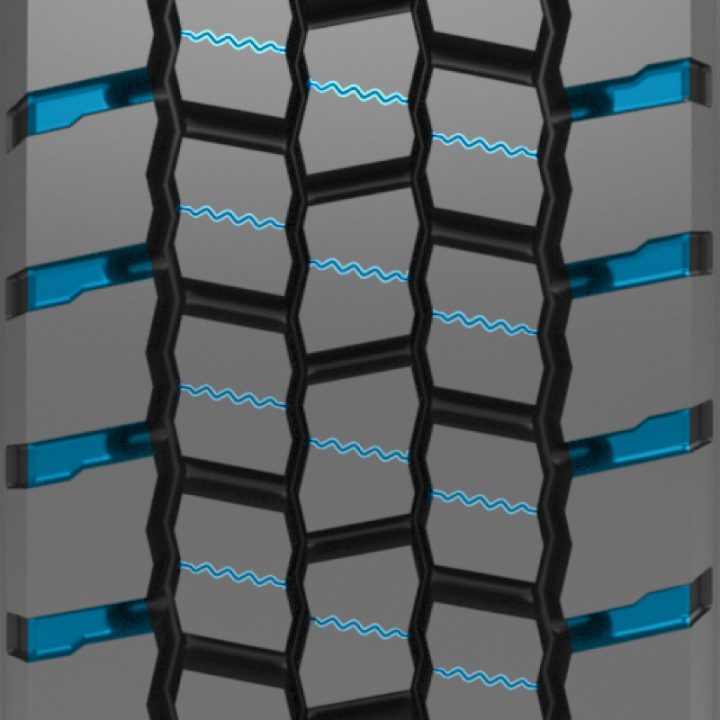

3D SIPES AND OPEN SHOULDER LUGS.
Offer excellent traction and
quicker water evacuation on all
road conditions.

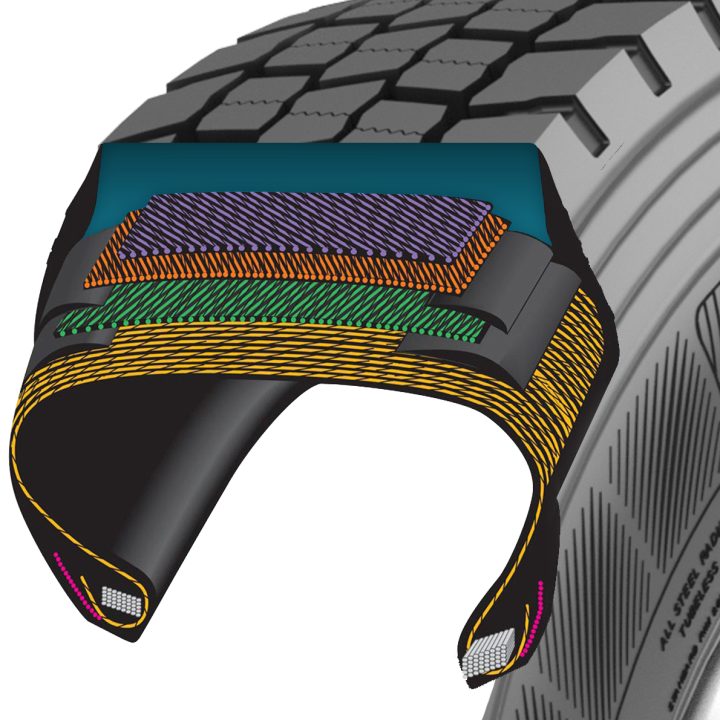

REINFORCED CASING.
For enhanced durability and
retreadability.
Specifications
| Tire Size | Service Description | Load Range/Ply Rating | Rim Width (inches) | Max. Load Single (lbs) | Max. Load Dual (lbs) | Inflation Pressure (psi) | Overall Diameter (inches) | Section Width (inches) | Minimum Dual Spacing (inches) | Tread Depth (32nds) | Static Loaded Radius (inches) | Max Speed (mph) | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 146/143L | H/16 | 8.25 | 6610 | 6005 | 120 | 42 | 11.1 | 12.4 | 26 | 19.6 | 75 | 491 |
| 255/70R22.5 | 140/137L | H/16 | 7.5 | 5510 | 5070 | 120 | 37.4 | 10 | 11.6 | 26 | 17.5 | 75 | 559 |
| 295/75R22.5 | 144/141L | G/14 | 9 | 6175 | 5675 | 110 | 40.9 | 11.4 | 13.2 | 26 | 19.1 | 75 | 509 |
| 11R24.5 | 149/146L | H/16 | 8.25 | 7160 | 6610 | 120 | 44.1 | 11.3 | 12.4 | 26 | 20.6 | 75 | 468 |
| 285/75R24.5 | 144/141L | G/14 | 8.25 | 6175 | 5675 | 110 | 42 | 11.2 | 12.9 | 26 | 19.7 | 75 | 491 |

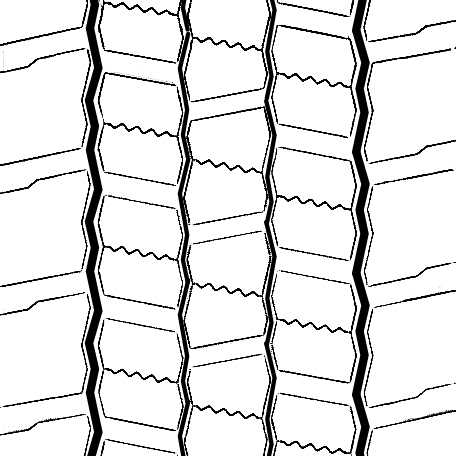

Regrooving Guidelines
| Casing Size | Regrooving Guidelines | Retreading Recommendations | ||
| Depth (32nds) | Width (32nds) | Buffing Radius | Tread Width (mm) | |
| 11R22.5 | 3 | 5-8 | 700 mm or 27.5 inches | 224 |
| 255/70R22.5 | 3 | 5-8 | 800 mm or 31.5 inches | 216 |
| 295/75R22.5 | 3 | 5-8 | 850 mm or 33.4 inches | 225 |
| 11R24.5 | 3 | 5-8 | 700 mm or 27.5 inches | 227 |
| 285/75R24.5 | 3 | 5-8 | 850 mm or 33.4 inches | 230 |
