ADM11
Drive Axle
A drive tire designed for mixed applications featuring a wide and deep tread for increased mileage, an open shoulder design to enable water and mud evacuation, variable-width grooves for enhanced retreadability, and an improved block profile to reduce wear and tear.
Category: MIXED (ON/OFF)
FREE REPLACEMENT 12MO / 2/32NDS
8-YEAR WARRANTY PERIOD
CASING WARRANTY ‘TIL 3 RETREADS
Features
WIDE AND DEEP TREAD.
Delivers longer mileage and extraordinary stability
OPEN SHOULDER DESIGN.
Enables quicker water and mud evacuation
VARIABLE-WIDTH GROOVES.
Lead to lower stone retention while protecting the casing for enhanced retreadability
Specifications
| Tire Size | Service Description | Load Range/Ply Rating | Rim Width (inches) | Max. Load Single (lbs) | Max. Load Dual (lbs) | Inflation Pressure (psi) | Overall Diameter (inches) | Section Width (inches) | Minimum Dual Spacing (inches) | Tread Depth (32nds) | Static Loaded Radius (inches) | Max Speed (mph) | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 315/80R22.5 | 156/150K | J/18 | 9.00 | 8820 | 7385 | 125 | 43.0 | 12.4 | 13.8 | 27 | 19.9 | 68 | 487 |

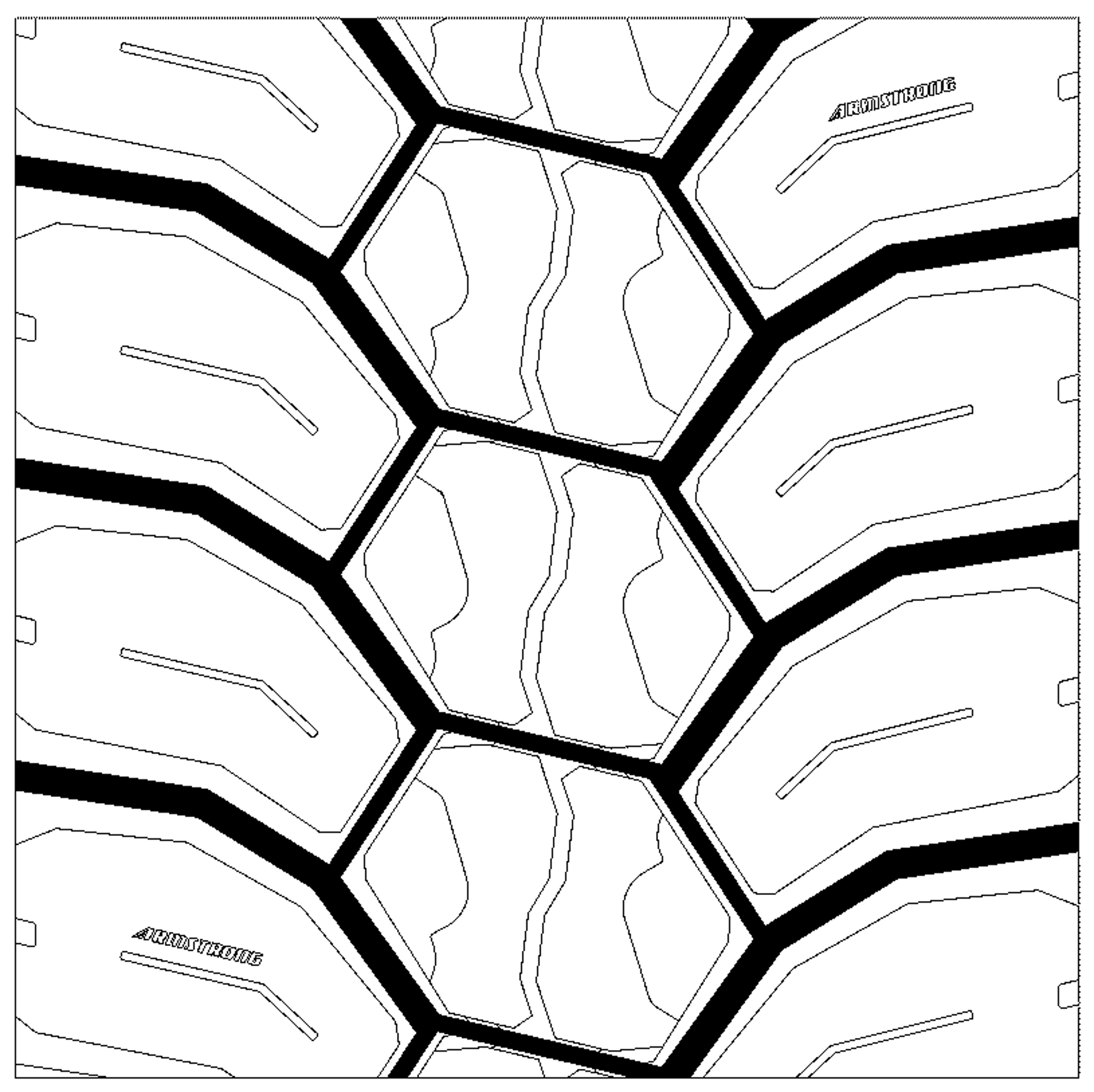

Regrooving Guidelines
| Casing Size | Regrooving Guidelines | Retreading Recommendations | ||
|---|---|---|---|---|
| Depth (32nds) | Width (32nds) | Buffing Radius | Tread Width (mm) | |
| 315/80R22.5 | 3 | 7-9 | 900 mm or 35.4 inches | 260 |
