ADH
A premium drive axle tire that can be used for both long-haul and regional applications offering a deeper tread for increased mileage, closed and solid shoulder ribs for resistance against uneven wear, and optimized block design to protect against stone retention.
Category: Long Haul
EPA SmartWay® Verified
FREE REPLACEMENT 12MO / 2/32NDS
8-YEAR WARRANTY PERIOD
CASING WARRANTY ‘TIL 3 RETREADS
ROAD HAZARD COVERAGE
Features
INCREASED LIFESPAN.
Deeper tread increases the tire life considerably in high torque applications.
RESISTANCE AGAINST IRREGULAR WEAR.
Closed and solid shoulder ribs offer excellent resistance against irregular wear.
PREVENTS STONE RETENTION.
Optimized block design and stone ejectors prevent retention of stones.
Specifications
| Tire Size | Service Description | Load Range/Ply Rating | Rim Width (inches) | Max. Load Single (lbs) | Max. Load Dual (lbs) | Inflation Pressure (psi) | Overall Diameter (inches) | Section Width (inches) | Minimum Dual Spacing (inches) | Tread Depth (32nds) | Static Loaded Radius (inches) | Max Speed (mph) | Revs Per Mile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 148/145L | H/16 | 8.25 | 6945 | 6395 | 125 | 42.0 | 11.2 | 12.5 | 29 | 19.6 | 75 | 497 |
| 295/75R22.5 | 144/141L | G/14 | 9.00 | 6175 | 5675 | 110 | 40.9 | 11.5 | 11.6 | 29 | 19.2 | 75 | 509 |
| 11R24.5 | 149/146L | H/16 | 8.25 | 7165 | 6615 | 120 | 44.3 | 11.2 | 12.5 | 29 | 20.7 | 75 | 471 |
| 285/75R24.5 | 144/141L | G/14 | 8.25 | 6175 | 5675 | 110 | 42.3 | 11.1 | 12.5 | 29 | 19.9 | 75 | 491 |

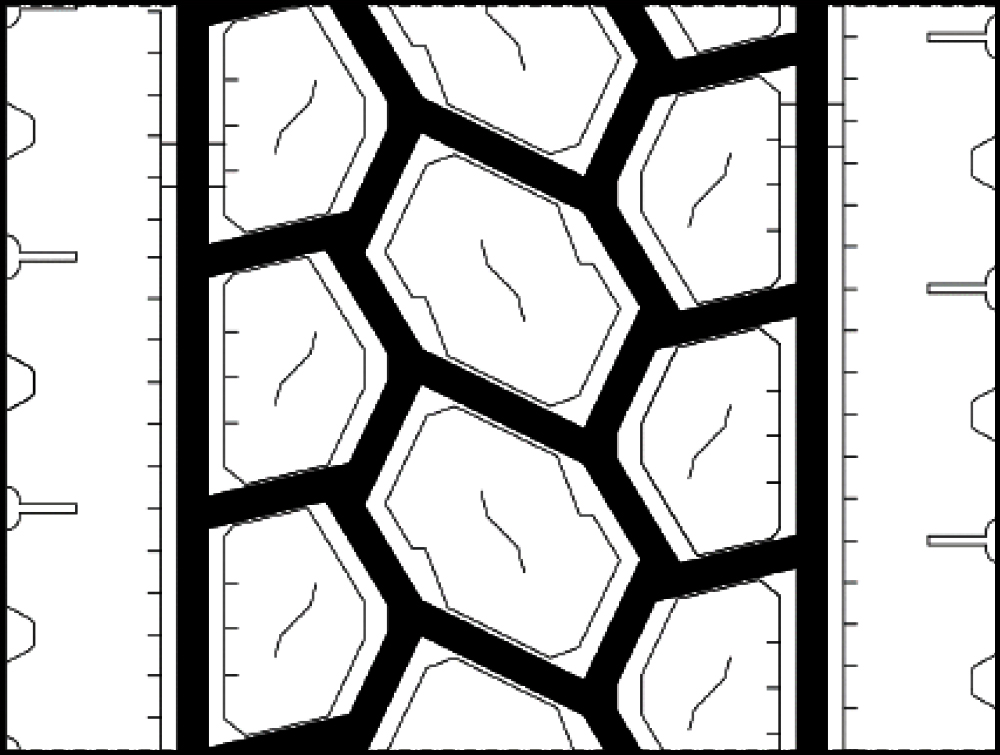

Regrooving Guidelines
| Casing Size | Regrooving Guidelines | Retreading Recommendations | ||
| Depth (32nds) | Width (32nds) | Buffing Radius | Tread Width (mm) | |
| 11R22.5 | 3 | 7-9 | 700 mm or 27.5 inches | 235 |
| 295/75R22.5 | 3 | 7-9 | 850 mm or 33.4 inches | 235 |
| 11R24.5 | 3 | 7-9 | 700 mm or 27.5 inches | 235 |
| 285/75R24.5 | 3 | 7-9 | 850 mm or 33.4 inches | 235 |
